  Home >> OLED Screen >> Segment LCD >> TN Positive 4-Digits Segment LCD Panel White LED Backlight 2.5V 5.0V


TN Positive 4-Digits Segment LCD Panel White LED Backlight 2.5V 5.0V [Comments(0)|Leave your Comment]
Item#:17052416291486
Score:2  (Score change Discount Voucher)
Weight:0.020 kg.
List Price:$0.00
Price:$2.53
You Save:$(2.53)
Qty:

Prev:40PIN TN Positive 4-Digits Segment LCD Panel White Backlight 3V 5V

Next:42PIN TN Positive 5-Digits Segment LCD Panel White LED Backlight 3V 5V

detail

Related

Comment

Payment

Shipping

 GD-29

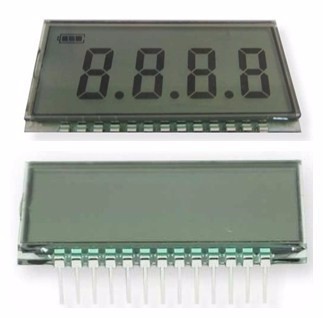

4-Digits Segment LCD Panel



Main Parameters

Display content

4-digits

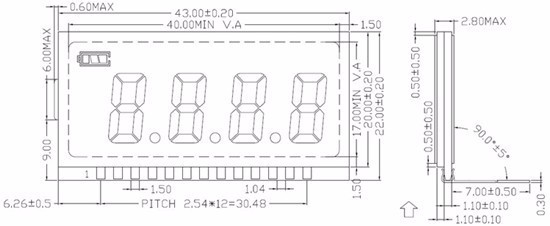

Outline Dimension

43.0x22.0x2.8mm

Active Area

40.0x17.0mm

Viewing Direction

6:00 o'clock

Backlight Color

White Backlight

Operating Voltage

2.5/3.0 V (Please choose and remark when buying)

 Operating Temp

Normal temp LCD:-10—60

 Storage Tempe

Extended temp LCD: -10—70

Drive method

1/4Duty  1/3Bias

Display Type

TN Positive

Polarizer Mode

Reflective/Transflective/Transmissive (Please choose and remark when buying)

Connector

Pin (10Pins) Pin Length is optional

Recommended Driver IC

/

Weight

10g
