  Home >> OLED Screen >> Segment LCD >> 40PIN TN Positive 4-Digits Segment LCD Panel White LED Backlight 3V 5V


40PIN TN Positive 4-Digits Segment LCD Panel White LED Backlight 3V 5V [Comments(0)|Leave your Comment]
Item#:17052416261481
Score:5  (Score change Discount Voucher)
Weight:0.025 kg.
List Price:$0.00
Price:$5.99
You Save:$(5.99)
Qty:

Prev:12PIN TN Positive 4-Digits Segment LCD Panel HT1621 Driver IC Yellow Green LED Backlight 5.0V (No HT1621)

Next:16PIN TN Positive 4-Digits Segment LCD Panel White Backlight

detail

Related

Comment

Payment

Shipping

 GD-20

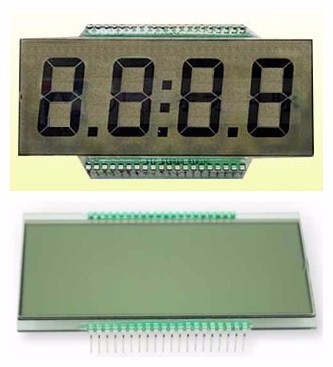

4-Digits Segment LCD Panel



Main Parameters

Display content

4-digits lcd display

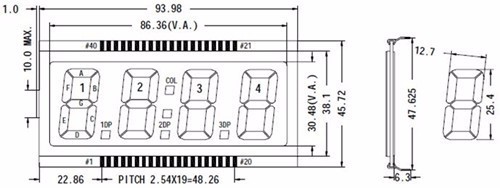

Outline Dimension

93.98x45.72x2.8mm

Active Area

86.36x30.48 mm

Viewing Direction

6:00/12:00 o'clock

Backlight Color

White LED

Operating Voltage

3.0V/5.0V (Please choose and remark when buying)



Operating Temp



Normal temp LCD:-10—60

Extended temp LCD: -20—70

Ultra-extended temp LCD: -40—80

(Please choose and remark when buying)



Storage Tempe

Normal temp LCD:-20—70

Extended temp LCD: -30—80

Ultra-extended temp LCD: -45—85

(Please choose and remark when buying)

Drive method

Static

Display Type

TN Positive

Polarizer Mode

Reflective/Transflective/Transmissive (Please choose and remark when buying)

Connector

Pin (40 Pins) Pin Length is optional

Recommended Driver IC

/

Weight

27g
