  Home >> OLED Screen >> specially size OLED >> 2.7 inch 30PIN 8Bit Yellow OLED Display Screen SSD1325 Drive IC 128*64 SPI Interface


2.7 inch 30PIN 8Bit Yellow OLED Display Screen SSD1325 Drive IC 128*64 SPI Interface [Comments(0)|Leave your Comment]
Item#:17051816491877
Score:35  (Score change Discount Voucher)
Weight:0.031 kg.
List Price:$0.00
Price:$35.34
You Save:$(35.34)
Qty:

Prev:2.7 inch 30PIN Yellow OLED Screen SSD1305 Drive IC 128*64 SPI I2C Interface

Next:2.7 inch 31PIN 8Bit Green OLED Display Screen SSD1305 Drive IC 128*64 SPI Interface

detail

Related

Comment

Payment

Shipping

 OLED-130

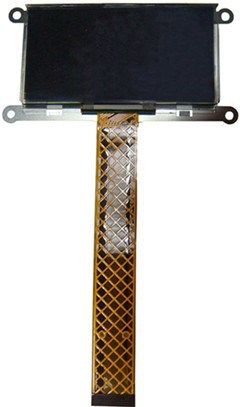

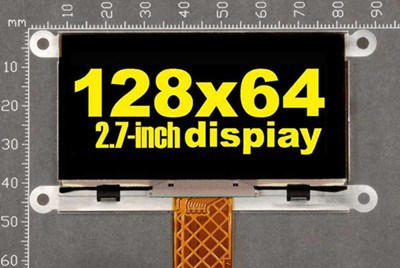

2.7 inch OLED Display Screen



Parameter
Resolution: 128*64
Screen size: 2.7inch
Color: yellow
Drive IC: SSD1325, with 16 gray level adjustment

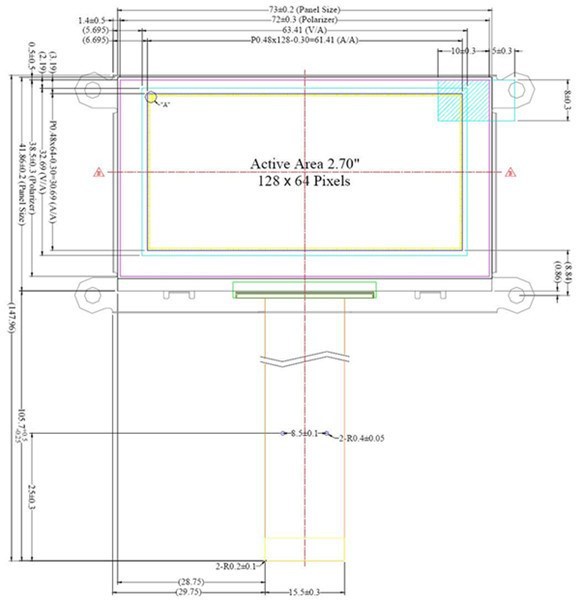

Display area: 61.41 (W) * 30.69 (H) mm
Screen size: 73 (W) * 41.86 (H) mm
Pixel size: 0.45 x 0.45mm
Bonding: COG+FPC

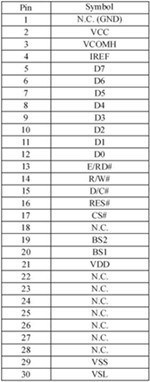

Pin: 30pin
Interface: 8-bit 68XX/80XX, 4-wire SPI
